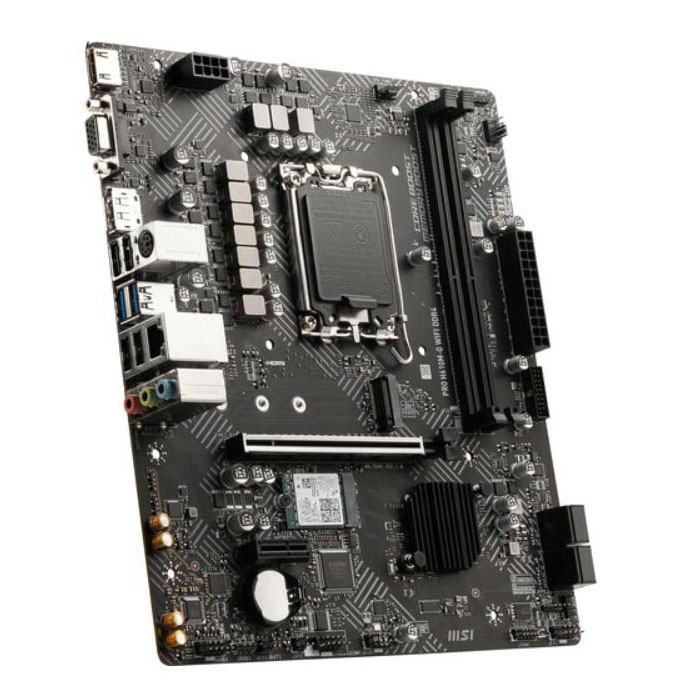

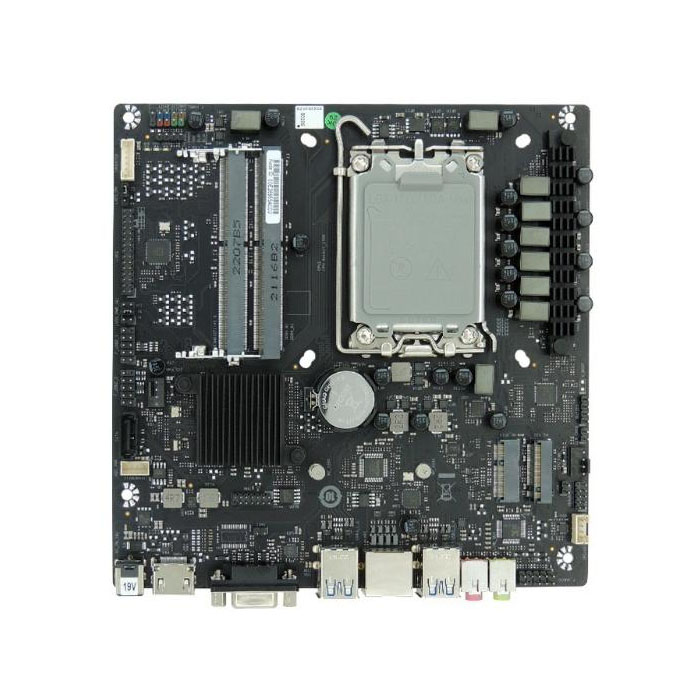

X86 motherboard-INTEL H610 Papan

Pangembangan papan kontrol produk industri YCTECH kalebu desain piranti lunak papan kontrol industri, upgrade piranti lunak, desain diagram skematik, desain PCB, produksi PCB lan pangolahan PCBA sing ana ing pesisir wétan China. Perusahaan kita ngrancang, ngembangake lan ngasilake papan induk X86-INTEL H610. Intel® Socket LGA1700 kanggo Prosesor Intel® Core™, Pentium® Gold lan Celeron® Generasi kaping 12*

Ndhukung Intel® Turbo Boost Technology 2.0 lan Intel® Turbo Boost Max Technology 3.0**

* CPU mung ndhukung nganti 65W

* Deleng www.asus.com kanggo dhaptar dhukungan CPU.

**Dhukungan Intel® Turbo Boost Max Technology 3.0 gumantung saka jinis CPU.

chipset

Intel® H610 Chipset

Memori

2 x SO-DIMM, Maks. 64GB, DDR4 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Memori Tanpa Buffer*

Arsitektur memori saluran dual

Ndhukung Intel® Extreme Memory Profile (XMP)

* Dhukungan tingkat data Memori nyata gumantung ing jinis CPU lan modul DRAM, kanggo informasi luwih lengkap deleng www.asus.com kanggo Memory QVL (Dhaptar Vendor Qualified).

kertu grafis

1 x DisplayPort**

1 x port HDMI®***

1 x konektor LVDS

*Spesifikasi grafis bisa beda-beda ing antarane jinis CPU.

** Ndhukung maks. 4K@60Hz kaya sing ditemtokake ing DisplayPort 1.4.

*** Ndhukung 4K@60Hz kaya sing ditemtokake ing HDMI 2.1.

antarmuka piranti panyimpenan

Total ndhukung 1 x M.2 slot lan 2 x SATA 6Gb / s bandar

Prosesor Intel® 12th Gen

- 1 x slot M.2 (Kunci M), jinis 2260/2280 (ndhukung mode PCIe 4.0 x4 & SATA)

Intel® H610 Chipset

- 2 x SATA 6.0 Gb/s port

Fungsi Internet

1 x Realtek 1Gb Ethernet

ASUS LANGuard

antarmuka USB

USB mburi (Total 4 port)

2 x USB 3.2 Gen 2 port (2 x Tipe-A)

2 x USB 2.0 port

USB ngarep (Total 7 port)

1 x USB 3.2 Gen 1 header ndhukung tambahan 2 USB 3.2 Gen 1 port

2 x USB 2.0 header ndhukung tambahan 4 port USB 2.0

1 x USB 2.0 header ndhukung tambahan 1 USB 2.0 port

efek swara

Realtek 7.1 Surround Sound KODE Audio Definisi Dhuwur*

- Ndhukung: Jack-deteksi, Panel ngarep Jack-retasking

- Ndhukung puter maneh nganti 24-Bit/192 kHz "

* Sasis karo modul audio HD ing panel ngarep dibutuhake kanggo ndhukung output audio 7.1 Surround Sound.

Konektor piranti I/O panel mburi

2 x USB 3.2 Gen 2 port

2 x USB 2.0 port

1 x DisplayPort

1 x port HDMI®

1 x Realtek 1Gb port Ethernet

2 x Audio jacks

1 x Konektor Daya DC (Dhukungan 19V)

Antarmuka piranti I/O sing dibangun

Fan lan Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 2-pin + 19V konektor Daya

1 x konektor daya SATA

Panyimpenan related

1 x slot M.2 (Kunci M)

2 x port SATA 6Gb/s

USB

1 x USB 3.2 Gen 1 header ndhukung tambahan 2 USB 3.2 Gen 1 port

2 x USB 2.0 header ndhukung tambahan 4 USB 2.0 port

1 x USB 2.0 header ndhukung tambahan 1 USB 2.0 port

AIO System related

1 x 2-pin konektor daya DC internal

1 x Stereo speaker konektor

1 x header DMIC

tampilan panel flat related

1 x Header pilihan voltase inverter lampu latar

1 x FPD padhange header

1 x Panel pilihan voltase header

1 x Panel mati header

macem-macem

1 x Clear CMOS header

1 x Chassis Intrude header

1 x COM Port header

1 x COM debug header

1 x Header Audio Panel Depan (AAFP)

1 x konektor LVDS

1 x slot M.2 (Tombol E)

1 x Header Speaker

1 x SPI TPM header (14-1pin)

Header Panel Sistem 1 x 10-1 pin

fungsi BIOS

128 Mb Flash ROM, UEFI AMI BIOS

fungsi manajemen

WOL dening PME, PXE

Isi Paket

Kabel

2 x kabel SATA 6Gb/s

1 x kabel daya SATA

macem-macem

2 x I/O Shields

Media Instalasi

1 x Dhukungan DVD

Dokumentasi

1 x Kartu Kunci Aktivasi ACC Express

1 x Pandhuan pangguna

Didhukung OS

Windows® 11 64-bit, Windows® 10 64-bit

ukuran motherboard

Thin Mini-ITX Form Factor

6.7" x 6.7" (17.0cm x 17.0cm)
